Why VIN and Model Code Checks Decide Fairing Fitment
Fairing panels for the 2009 CBR family are moulded for one generation, not for a model year in general. Two numbers on the bike decide whether an aftermarket kit will bolt on: the VIN and the Honda model code. Neither of them is the year printed in a listing title.
The 2009 CBR1000RR belongs to the 2008-2011 generation, so panels sold for the years either side of it can differ at the mounting tabs, the intake ducts and the tail. A kit listed for a 2007 or a 2012 machine can photograph identically and still leave you drilling holes and trimming plastic. Our Honda CBR1000RR fairings 2008-2011 range is grouped by that year band for the same reason.
US-market bikes also carry their own VIN and emissions configurations, and catalogues do not always reflect them. Two machines from the same model year can wear different bodywork depending on where they were sold and how they were specified.
The checks below cover the three things worth settling before you buy: the VIN decode, the model code lookup and the paint code.
Reading the 17-Character VIN on a 2009 Honda CBR
A 2009 Honda CBR built for the US market carries a 17-character VIN, and reading it properly is quicker than reading a listing. Characters one to three are the world manufacturer identifier: Japanese-built Hondas usually begin with JH2, and the third character marks the vehicle type, which separates a Honda motorcycle from a Honda car.
Characters four to eight are the vehicle descriptor. They encode the model line, engine displacement and body configuration, so a CBR600RR and a CBR1000RR part company here. Position nine is a check digit that validates the rest of the string. Position ten is the model year, which is 9 on a 2009 machine. Eleven is the plant code, recording where the bike was assembled, and twelve to seventeen are the production serial number.
Decoding the VIN confirms model and year before anything is ordered, and it is the first filter between 2009 Honda CBR fairings and panels moulded for another year. Riders shopping for Honda CBR fairings USA stock can match the bike to the correct 2008-2011 Honda CBR1000RR fairings listing once the VIN is confirmed.
Quick VIN decoder for fairing buyers
| VIN position | Character(s) | What it confirms | What to do with it |
|---|---|---|---|
| 1-3 | WMI, e.g. JH2 | World manufacturer identifier: Japan-built Honda motorcycle | Confirm it is a Honda, not a look-alike import |
| 4-8 | Vehicle descriptor | Model line, engine size, body configuration | Confirm CBR1000RR, not CBR600RR or CB1000R |
| 9 | Check digit | Validates the VIN sequence | Check that the string has not been mistyped or altered |
| 10 | Model year code, 9 = 2009 | Confirms the machine is a 2009 model | Match it to the 2008-2011 Honda CBR1000RR fairings collection |
| 11 | Plant code | Assembly plant location | Note it for paint-code and parts enquiries |
| 12-17 | Serial number | Production sequence | Record it for your order reference and any warranty claim |
VIN Positions and What They Confirm Before Ordering 2009 CBR Fairings
Where you start reading depends on what is still unclear. If the seller has already named a generation, start at position ten: a year character that does not decode to 2009 puts you in the wrong category, and the tabs will tell you so later. Positions four to eight then rule out a same-year sibling model, and position nine is worth checking either way, because it catches a string that has been mistyped or tampered with.
How to read it in practice
Photograph the stamp on the steering head and write the whole VIN down. That photo plus the year character settles most fitment arguments with a seller before they start. Bear in mind that kits are sold by generation range, not by single year, so the exact year only matters for working out which range applies.
Honda Model Code and Generation Identification
A model code check costs a minute and saves a return label.
Every Honda carries one, stamped into the frame plate at the steering head and repeated on the VIN sticker along the frame spar. That code, not the badge on the tail, identifies the model and the market version you have.
Generations divide the plastic too. The Honda CBR1000RR fairings 2008-2011 share one fairing architecture, so panels from the 2004-2007 or 2012-2016 runs will not line up. A CBR600RR sold in the same year carries a different model code and therefore different panels: same family name, different mouldings.
Market version adds a third variable. US-market and other-market versions of one model year can differ in lighting, emissions hardware and side-panel openings.
So before ordering 2009 Honda CBR fairings, match the printed code against the seller’s listed fitment years. A photo of a fitted kit proves very little on its own.
Caption: The sequence runs in one direction only – read the VIN, confirm the model code, match the generation year range, then confirm the paint code.
Confirming the Paint Code and Graphics Scheme
The colour code comes before the order. Honda prints it on a label on the frame or in the under-seat area, reachable with the seat or the tail panel off. The code covers the base colour and any multi-tone layout, not just the main shade.
An aftermarket kit is painted to a described scheme rather than matched to a photograph. One model year can be offered in several schemes, and decal sets usually ship separately, so the finish in a product shot may not include the graphics.
Ask whether the kit arrives painted and pre-drilled or bare, then compare the 2008-2011 Honda CBR1000RR fairings options against that code.
Counting the pieces, not just the price

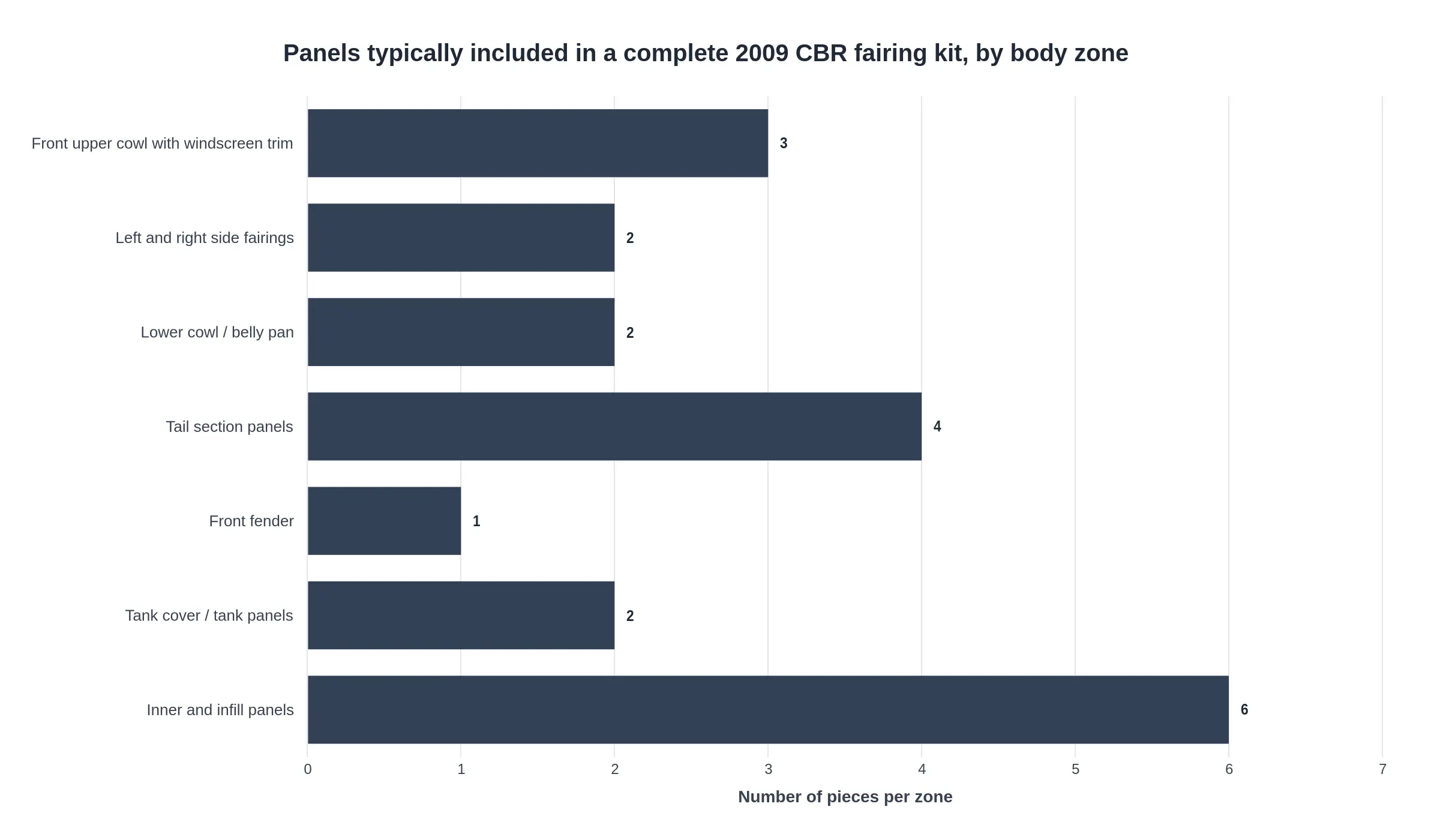

Prices are easy to compare. Contents are not. A complete set is a group of separately moulded zones, not one shell, and every seller bundles them a little differently. The chart below shows a typical breakdown so you can check a listing line by line.
How a complete 2009 CBR kit is assembled from separate body zones, so buyers can compare exactly what a listing actually includes.
What the zones tell you
The small parts decide whether a kit fits cleanly on arrival. The front fender is the only single-piece zone in a typical set. Inner and infill panels are the largest count at roughly six pieces, because they sit behind the main skins and close the gaps around the radiator, the frame spars and the cockpit. Those are the pieces you notice missing once the upper cowl is bolted up.
- Inner and infill panels (about 6 pieces): the fit-critical fillers most often cut from budget kits
- Tail section panels (about 4 pieces): tail sides plus the under-seat or seat cowl section
- Front upper cowl with windscreen trim (about 3 pieces): nose shell plus trim and the screen mounting area
- Side fairings, belly pan and tank panels (2 pieces each): the large visible surfaces, sold as left and right pairs
- Front fender (1 piece): the smallest zone, and the one most often forgotten
Treat these counts as typical composition, not a specification for any particular product, and confirm the piece count against the listing photos and text. If the generation is still unclear, start from the Honda fairing kits range and match the year to your model code.
Pre-order checklist
Before you pay for Honda CBR fairings USA, work through these eight checks.
- Read the VIN on the steering head and decode the model year.
- Match the model code on the frame plate to your exact CBR variant.
- Confirm your bike sits inside the 2008-2011 CBR1000RR generation range.
- Record the OEM colour code from the under-seat sticker before choosing paint.
- List every panel your bike is currently missing, cracked or scuffed.
- Check whether the listing specifies pre-drilled mounting holes for every panel.
- Confirm that hardware and fasteners ship inside the box.
- Verify the seller’s US shipping windows and return terms in writing.
Two minutes of checking beats a repaint. Work through each point against the 2008-2011 CBR1000RR fairings listing page, then screenshot your answers so you have evidence if a panel ever arrives wrong.
Figure 1. Each panel in a fairing set locks onto its own discrete mounting tabs and bolt points, so every fastening position has to line up with your model’s tab layout instead of with a continuous one-piece shell.
The panel count on a custom Honda fairings set is worth checking against your bike for the same reason.
Mounting Hardware and Fitment Expectations
Every aftermarket panel set is moulded to one model’s tab and bolt layout, so good fitment starts with your own bike, not with the box on the bench. Expect small adjustments at bolt holes, slot alignment and panel gaps, and plan to loosen, nudge and re-tighten a few fasteners before everything sits flush.
Missing, bent or previously repaired OEM brackets, grommets and clip nuts are a common reason a correctly coded kit appears not to fit. Inspect the bike’s own brackets and fasteners first, then judge the panels.
Most ABS fairing kit sets arrive pre-drilled, while hardware kits are sometimes supplied separately, so confirm what is in the box. Ordering 2009 Honda CBR fairings through a model-coded Honda fairings collection gets you the right moulding; the rest is patience.
Before You Pay: US Ordering Details That Matter
Before paying for Honda CBR fairings USA, confirm a few practical points. Ask for the stated manufacturing and dispatch lead times, and check whether the kit ships from inside the US or is imported. Imported goods can add duty and handling charges, so budget for them.
Confirm the return window for painted or made-to-order panels, and find out whether damage claims require photographs taken before installation. Painted and custom kits usually carry different terms from ready-to-stock items, so read both policies. Work out the total landed cost before you compare sticker prices.
Summit Fairings lists fairings across more than 3,000 styles for almost all motorcycle models at 10-40% below comparable sites, and answers questions within six hours. You can browse ready-to-ship fairing kits here.
Questions to confirm with the seller before checkout
- Confirm the fitment year range matches the model your VIN check identified.
- Confirm whether the kit is painted to a stated colour scheme or supplied unpainted.
- Confirm exactly which panels and mounting hardware are included in the box.
- Confirm whether all holes are pre-drilled and the mounting points are marked.
- Confirm the dispatch time and the shipping origin warehouse for your order.
- Confirm the return terms that apply specifically to painted goods.
Once those answers are in writing, browse the Honda CBR1000RR 2008-2011 range, the wider Honda fairings range and the custom Honda fairings range for colour changes before you pay.
Frequently Asked Questions
Are 2009 and 2010 CBR1000RR fairings interchangeable?
Yes. Both years belong to the same 2008-2011 generation, so panel shapes and mounting points are shared. A kit listed for that range fits either year, including 2009 Honda CBR fairings sold for the whole generation. What changed between 2009 and 2010 was the paint schemes, not the plastic.
Where is the model code stamped on a Honda CBR?
On the steering head of the frame, usually on the right side beside the VIN plate. The stamp is a short alphanumeric string, often on a riveted tag or etched into the metal.
Can I order an aftermarket kit for a bike with replaced or repainted bodywork?
Yes. Order against the frame’s model code, not the paint on the panels. Replaced or repainted bodywork does not alter the frame, so the code still identifies the right kit.
Are unpainted kits available, and what preparation do they need?
Unpainted kits are available and arrive in raw ABS. Scuff the surface lightly, degrease it, then apply primer before the base coat and clear.
What should I do if a correctly coded kit still will not line up?
Check the installation order and the condition of the brackets first. A bent or missing bracket causes most misalignment. Send photographs to the supplier before drilling or trimming anything, since modification voids fitment support.
Closing Summary
The sequence is short: confirm the VIN, confirm the model code and generation year range, confirm the paint code, then compare kit contents and seller terms. The Honda fairings catalogue and the featured products page show the current range, and questions sent through either are answered within six hours. Orders go through without rework when every identifier has been checked against the motorcycle itself, not against a listing description or a previous owner’s recollection.
